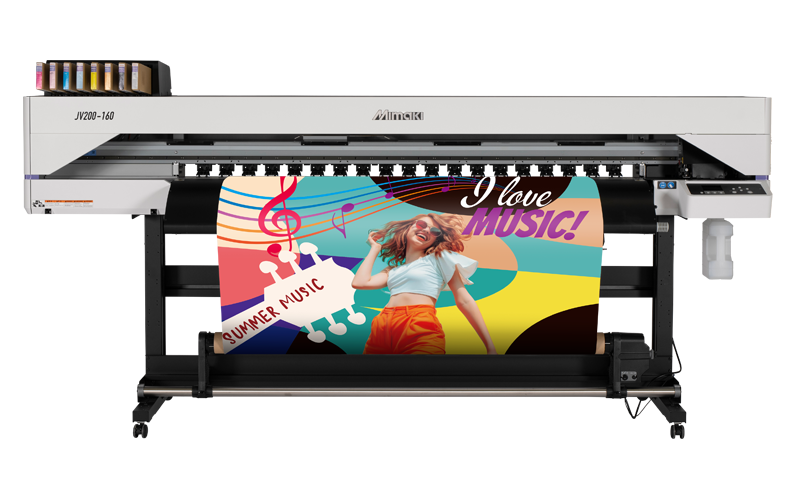

JV200 Series
| Previous | 2 / 9 | Next |
200series | Eco Solvent Inkjet Printer
JV200 Series
In Pursuit of High Image Quality and Ease of Use for everyone
''JV200 Series'' is a Roll to Roll eco-solvent inkjet printer which equipped with a single print head of ''330 Engine'' in our flag-ship printer, enabling even inexperienced operators to produce printed products beautifully, quickly, and easily.
Model
| JV200-130 | Maximum print width: 1,360 mm (53.5'') |
| JV200-160 | Maximum print width: 1,610 mm (63.4'') |
| JV200-160B | Maximum print width: 1,610 mm (63.4'') |
Product outlines
- Beautiful printing. Mimaki's flag-ship printer's ''330 Engine'' a single print head is mounted to achieve high image quality.
- Reliable even during busy periods. Highest practical print speed at entry level: 17.0 m²/h
- Simple design that is easy for anyone to use. Easy to work with, easy to check, and easy to maintain.
- Compatible with our new ink ''SS22,'' which reduces odor by approximately 40%*1 and does not contain GBL*2, the use of which has been increasingly regulated around the world in recent years. The industry-leading outdoor weather resistance keeps printed materials vividly colored, while taking operators and the global environment into consideration.
*1: Comparison with in-house ink based on our evaluation
*2: GBL: Gamma-Butyrolactone (substance). A type of organic solvent. It is generally added as a material that constitutes ink in conventional solvent printers of our company and other companies.
Production Example of JV200 Series

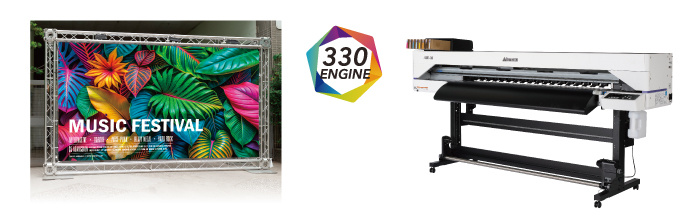

Overwhelming Beauty
The JV200 is equipped with a single print head of ''330 Engine'' in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.

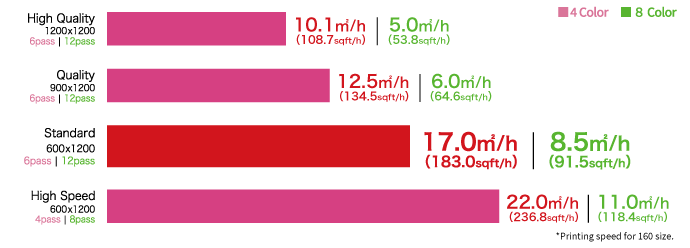

Reliable Productivity even during Peak Season
Easy for Everyone
Simple Design
Single Print Head for Simple Maintenance
Single print head system contributes less cleaning time and adjustment time. The simple design allows you to work quickly and easily.

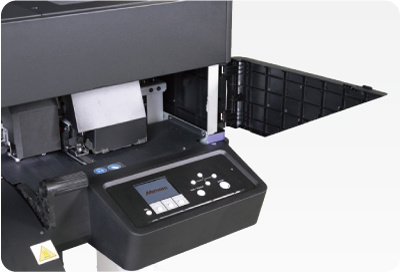

Wide Open Cover for Easy Access
The SS21 ink has evolved! New GBL-free eco-solvent ink ''SS22''
Inks for general eco-solvent printers contain an ingredient (GBL) whose use has been increasingly regulated worldwide in recent years. SS22 is a new eco-solvent ink that does not contain GBL and is safer for operators than ever before.
Production Example of JV200 Series
Overwhelming Beauty
The JV200 is equipped with a single print head of ''330 Engine'' in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.
Reliable Productivity even during Peak Season
Easy for Everyone
Simple Design
Single Print Head for Simple Maintenance
Single print head system contributes less cleaning time and adjustment time. The simple design allows you to work quickly and easily.
Wide Open Cover for Easy Access
Up-Facing Control Panel for Easy Operation

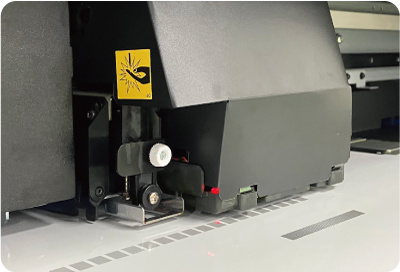

Easy and Precise Automatic Set Up
Simple Design Software ''Simple Create''
Easy and Precise Automatic Set Up
Automatically performs necessary adjustment at the media setup to ensure optimal image quality at all times.
(DAS | Dot Adjustment System)

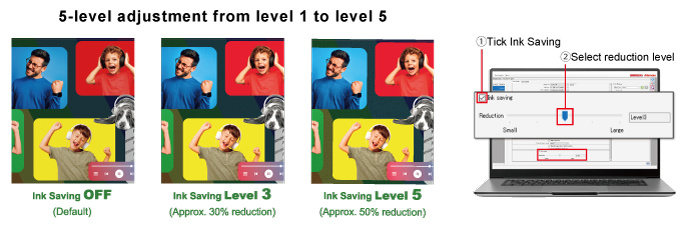

Ink Saving Function: Reduce Ink Consumption with Just 2 Clicks
Ink Saving Function: Reduce Ink Consumption with Just 2 Clicks
Anyone can easily reduce ink consumption without technical expertise.
This function is available with any substrates and profiles.
Simple Design Software ''Simple Create''
Simple Create is software that allows you to create labels, POP, stickers, and other designs without a need of DTP software.
It provides simple tools for creating designs and cutlines, as well as direct output from the software.
The SS21 ink has evolved! New GBL-free eco-solvent ink ''SS22''
Inks for general eco-solvent printers contain an ingredient (GBL) whose use has been increasingly regulated worldwide in recent years. SS22 is a new eco-solvent ink that does not contain GBL and is safer for operators than ever before.
The SS22 ink inherits the industry's best weather resistance, dryness, and other features of SS21 ink, which has long been popular in the market, while reducing odor by about 40%. Users of our conventional machines can switch to JV200 with confidence.
It is also sold in a paper cartridge format that significantly reduces the amount of plastic used, making it an environmentally friendly solution.
*1 Available in some emerging countries only
Specifications
| JV200-130 | JV200-160 | ||
|---|---|---|---|
| Print head | On-demand piezo print head | ||
| Print resolution | 600dpi, 900dpi, 1200dpi | ||
| Print gap | By manual 2 levels (1.5/2.0 mm) | ||
| Ink | Type/Color |
Eco-solvent ink SS22 (C,M,Y,K,Lc,Lm,Lk,Or) SS21 (C,M,Y,K,Lc,Lm,Lk,Or) BS4 (C,M,Y,K) *1 |
|
| Capacity *2 |
SS22£º440ml Ink cartridge / 1L Ink pack SS21: 440ml Ink cartridge / 2L Ink pack BS4: 600ml Ink pack *3 / 2L Ink pack |
||
| Maximum print width | 1,360mm (53.5'') | 1,610mm (63.4'') | |
| Media | Maximum width | 1,370mm (53.9'') | 1,620mm (63.8'') |
| Thickness | 1.0 mm or lower | ||
| Roll diameter | φ180 mm or less | ||
| Roll weight | 25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *4] | ||
| Roll inside diameter | 2 inch / 3 inch | ||
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed | ||
| Certifications |
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC |
||
| Power supply | Single-phase (AC 100–120V/200–240V)×2¡¡50/60Hz±1Hz | ||
| Power consumption | Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode) | ||
| Operational environment |
Temperature: 20–30 °C (68–86 °F) Relative humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level |
||
| Dimensions (W×D×H) | 2,520 x 748 x 1,370 mm (99.2 x 29.4 x 53.9'') | 2,770 x 748 x 1,370 mm (109.0 x 29.4 x 53.9'') | |
| Weight | 130 kg (286.6 lb) | 140 kg (308.6 lb) | |
*2 The use of 1L/2L ink packs requires OPT-J0364 MBIS3 (Mimaki Bulk Ink System 3) and OPT-J0576 MBIS BKT OPT (attachment), which are options sold separately.
*3 600 ml ink pack requires eco cartridge (OPT-J0361: ECO CASE 4). Eco cartridges can be used repeatedly by replacing ink packs.
*4 With the OPT-J0502 Level Foot attached, supports media up to 45 kg (99.2 lb).
*1 With the OPT-J0502 Level Foot attached, supports media up to 45 kg (99.2 lb).
| JV200-160B | ||
|---|---|---|
| Print head | On-demand piezo head | |
| Print resolution | 600dpi, 900dpi, 1200dpi | |
| Print gap | By manual 2 levels (1.5/2.0 mm) | |
| Ink | Type/Color | Eco-Solvent Ink CS250 (C,M,Y,K) |
| Capacity | 1L bottle | |
| Maximum print width | 1,610 mm (63.4'') | |
| Media | Maximum width | 1,620 mm (63.8'') |
| Thickness | 1.0 mm or lower | |
| Roll diameter | φ180 mm or less | |
| Roll weight | 25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *1] | |
| Roll inside diameter | 2 inch / 3 inch | |
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed | |
| Certifications |
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC |
|
| Power supply | Single-phase (AC 100–120V/200–240V)×2¡¡50/60Hz±1Hz | |
| Power consumption | Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode) | |
| Operational environment |
Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level |
|
| Dimensions (W×D×H) | 2,770 x 748 x 1,403 mm (109.1 x 29.4 x 55.2'') *2 | |
| Weight | 140 kg (308.6 lb) | |
*2 Body dimensions exclude ink bottles.
- Some of the samples in this website are artificial renderings.
- Specifications, design and dimensions stated in this website may be subject to change without notice (for technical improvements, etc).
- The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
- Inkjet printers print using extremely fine dots, so colors may very slightly vary after replacement of the printing heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences.
